Solar Hybrid Systems Solar Energy System Home Hybrid Solar Power System House Solar Panel Kit 5kw 10kw 15kw 25kw Lithium

Place of Origin : china

MOQ : negotiated

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : negotiated

Battery Type : LiFePO4

Battery Nominal Voltage : 51.2V

Output Frequency : 50Hz/60Hz

Warranty : 12 years

Output Voltage (V) : 110V-240V

Controller Type : MPPT

Contact Now

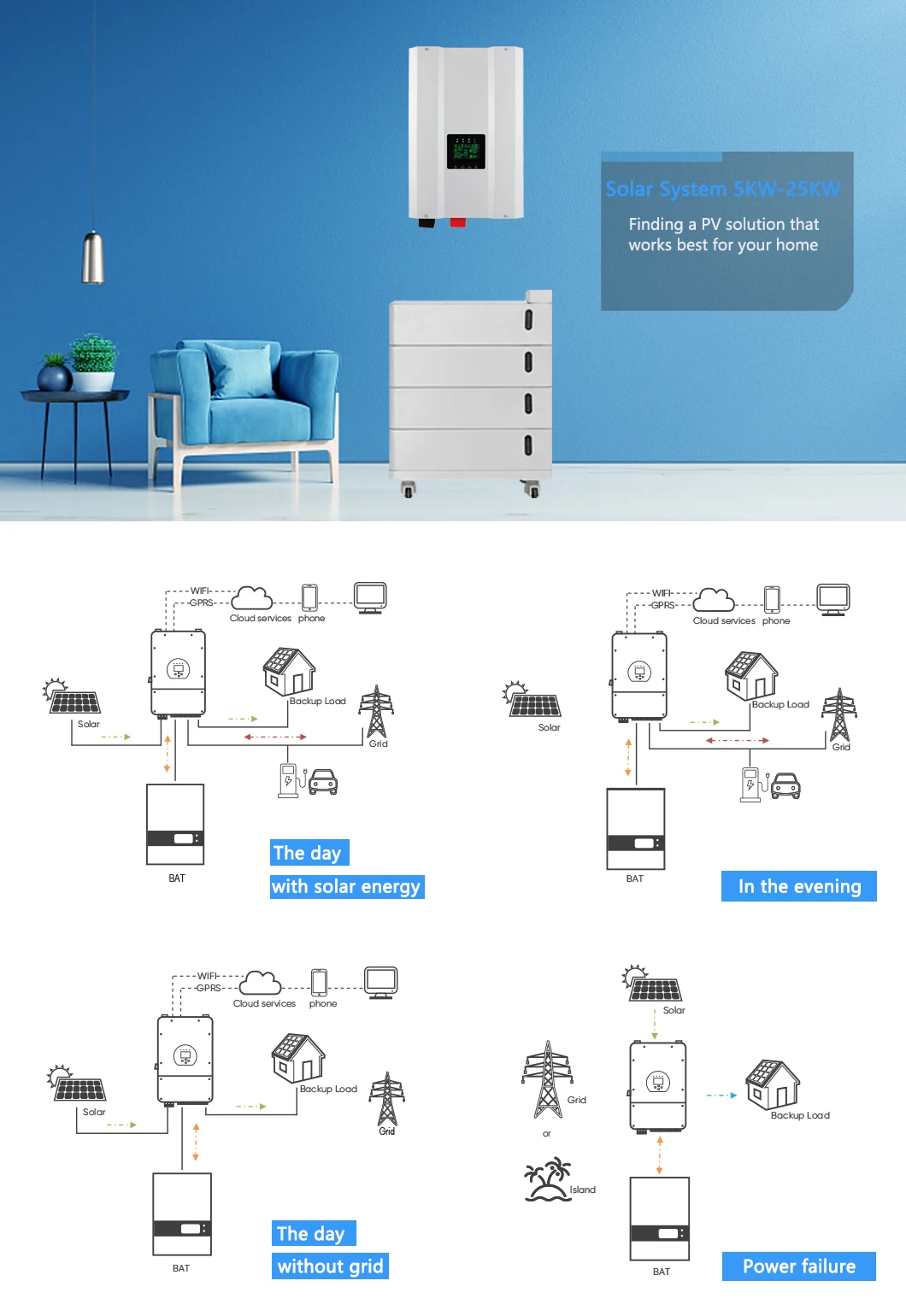

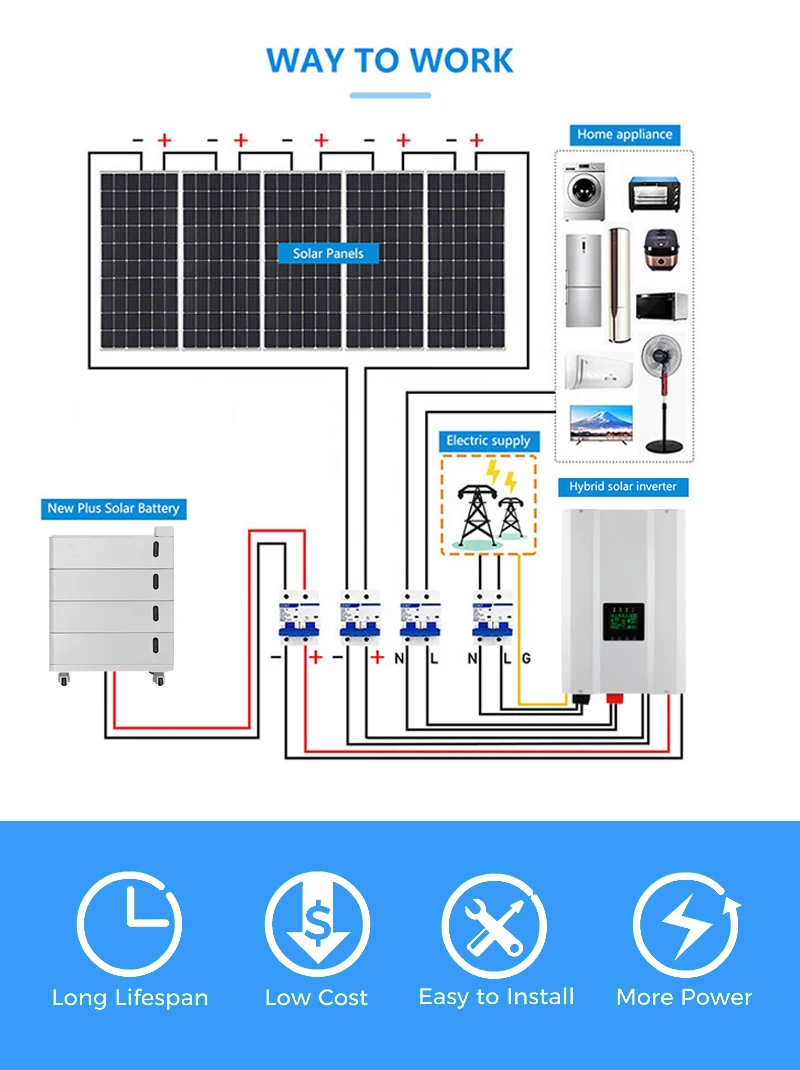

Project Presentation

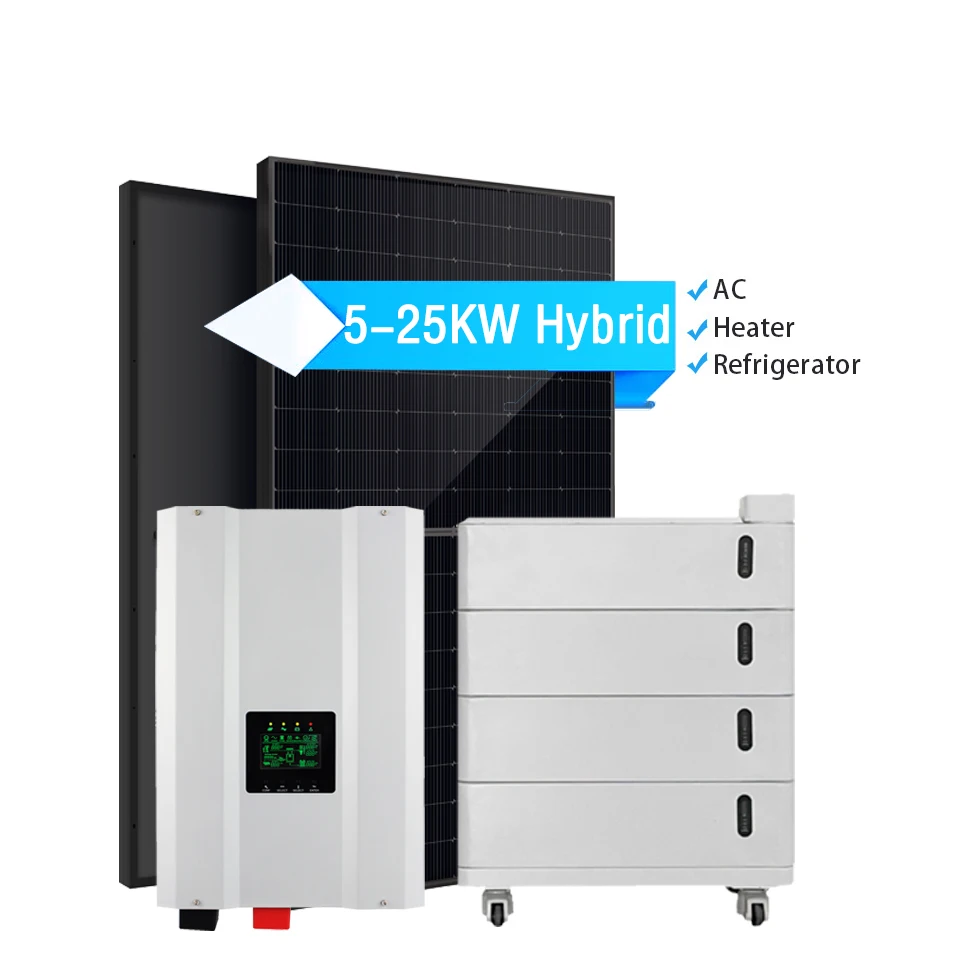

5KW 10KW 15KW 20KW 25KW Stacked Solar Photovoltaic System

Solar Hybrid Systems Solar Energy System Home Hybrid Solar Power System House Solar Panel Kit 5kw 10kw 15kw 25kw Lithium

Self-generating photovoltaic systems for use as a clean energy source in the home will save a lot of money on a family's electricity bill. smsenergy will customise a system solution that suits you better, which is also a good choice to become an emergency power source.


Half Cut Mono 450W Solar Panel	7 Pieces	12 Pieces	23 Pieces
DC Disconnect Switch	1 Piece	2 Piece	3 Piece
Hybrid Inverter	GS Series1-12KW	GS Series1-12KW	GS Series1-12KW
Rack Mounted LiFePo4 Battery	3Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground


Half Cut Mono 450W Solar Panel	34 Pieces	45 Pieces	56 Pieces
DC Disconnect Switch	4 Piece	6 Piece	9 Piece
Hybrid Inverter	GS Series1-12KW Hybrid inverter(Optional models)
Rack Mounted LiFePo4 Battery	15Kwh	20Kwh	25Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground

Details Images

item	value
Warranty	12 years
Free installation service	NO
Place of Origin	GUA

Model Number	SMS-SL25KW-HY
Application	Home
Solar Panel Type	Monocrystalline Silicon
Battery Type	Lithium Ion
Controller Type	MPPT
Mounting Type	Ground Mounting, Roof Mounting, Carport Mounting
Load Power (W)	3KW,5KW,6KW,8KW, 10KW, 15KW,20KW
Output Voltage (V)	110V-240V
Output Frequency	50 60HZ
Work Time (h)	24 Hours
Certificate	CE, ROHS, TUV, IEC
Pre-sales project design	Y
System Type	solar energy system
Battery type	Lithium iron phosphate/LifePo4
Solar Panel	Mono perc Solar Panel
Battery nominal voltage	24/48/51.2 volts
Voltage range	42V~58V
Controller	MPPT Controller (Optional)
Inverter	Hybrid Inverter
Battery	LiFePO4 lithium battery
System Life Span	25 years
OEM Service	Acceptable

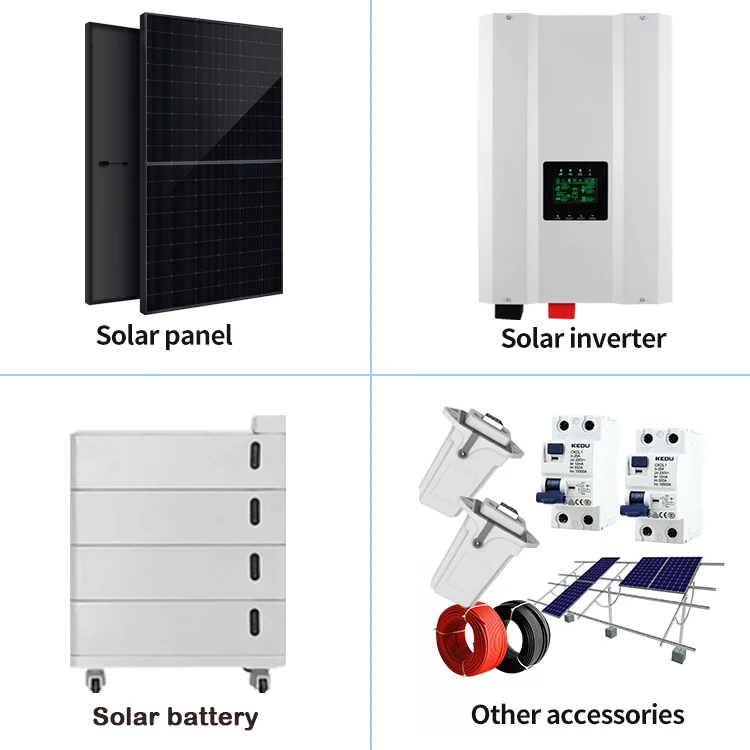

Product Details

PV Panel

● Peak Power Watts: 450W

● Maximum Power Voltage: 42V

● Maximum Power Current:13.12A
● Dimensions:2094*1038*35mm
● 25 years power output guarantee
● High actual yield during lifetime
● 21.3% Efficency
● Waterproof Label on the Panel

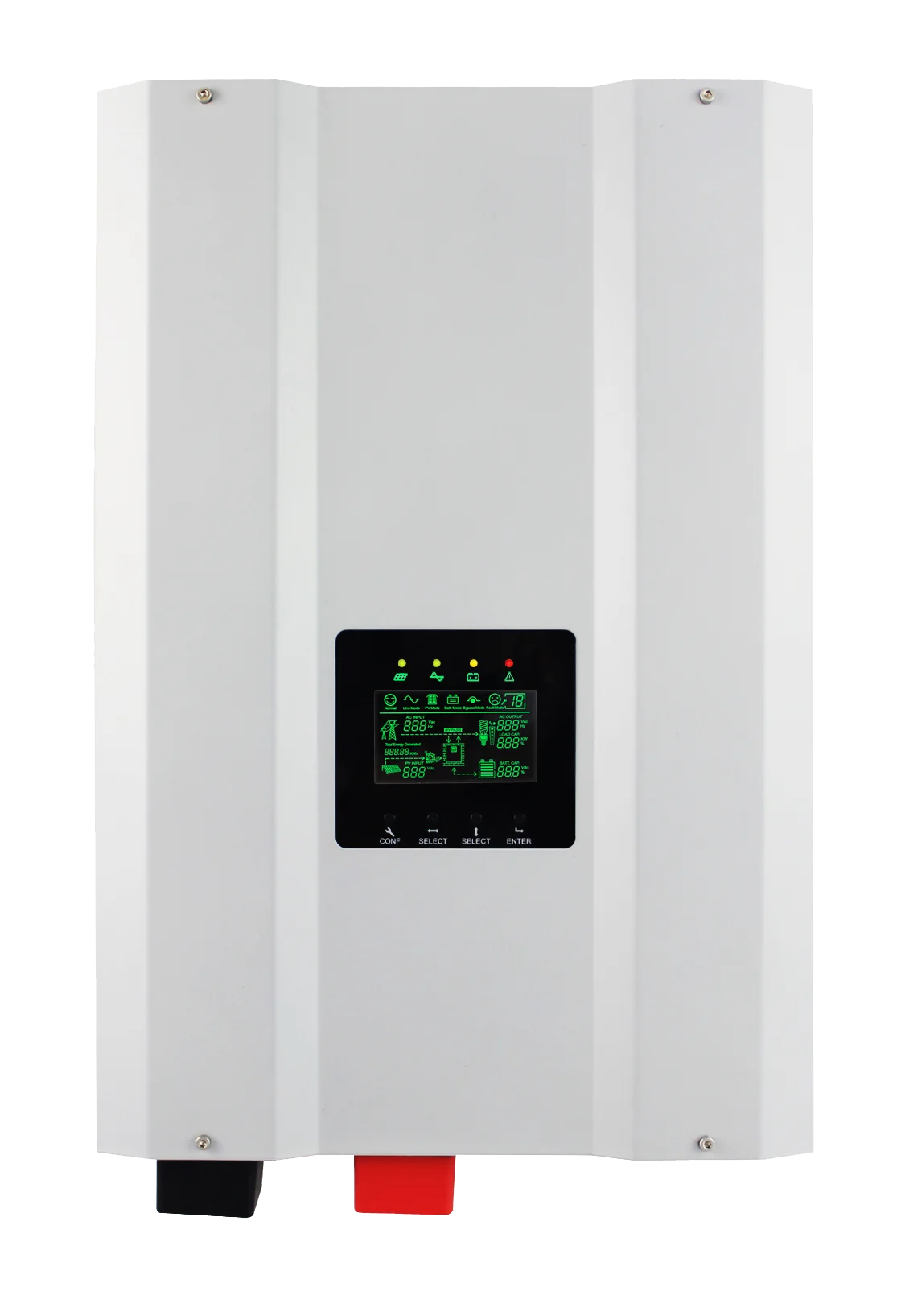

GS Series1-12KW

● Rated Ouput Power: 2-10.2KW
● Nominal DC Voltage: 48V
● AC240V 1-phase
● Hybrid Model
● Built-in MPPT charger

Wall Mounted Battery

● LiFePo4 Lithium Battery
● 48V/51.2V 100Ah/200Ah/300Ah/400Ah/500Ah per piece● 6000 cycle@Percentage of recoverable capacity 80%
● Service Life: 10 years
●Wall-mounted design, easy installation

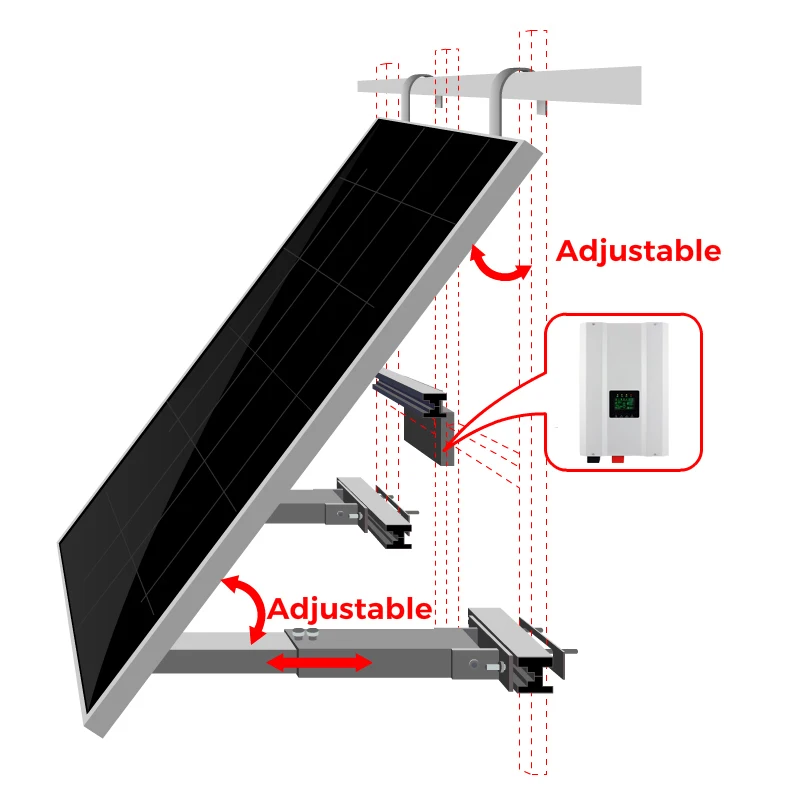

SOLAR PANEL RACK

Rooftype mounting rackincluding complete fittings,aluminum allov(Rack can be customized per request)

PV ARRAY COMBINER

● Wide range of DC input voltage
● IP65 guard level, suitable for outdoor

● Reliable thunderstorm & surge
protection
● Multiple PV stringsinputs(4 strings
500V)

CABLES

International standard, with specification suitable for solar system, PV1-F 1*4 series red and black
